1935 Rickenbacker (Rickenbacher) A-25 Electro “Fry Pan” Lap Steel Guitar

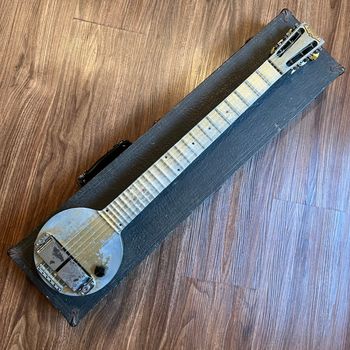

Rickenbacker A-25 Model Lap Steel Electric Guitar (1935), made in Los Angeles, gold enamel finish, cast aluminum body and neck, original black hard shell case.

This extremely rare Rickenbacher A-25 Electro Hawaiian Guitar, nicknamed the "Frying Pan" for its distinctive shape, is simply one of the most historically important guitars of the 20th century. This was the first commercially successful electrified string instrument as well as the first (more or less) solid body guitar. It was the initial carrier of the celebrated pre-war 1 1/2-inch horseshoe magnet pickup, which was one of the first electro-magnetic instrument pickups to be perfected and is still one of the greatest-sounding units ever. While Rickenbacker went on to produce many other instrument designs, the "Frying Pan" is where it all began for both this California company and electric guitars in general.

The instrument was first offered in extremely small numbers by 1932 as the Model A-25, with a 25" scale length. A companion A-22 model with a 22" scale followed, and as the short scale became more accepted on electric Hawaiian guitars, the A-25 was heavily outsold by it. The number of extant A-25s is very small; many are rumored to have been collected for scrap aluminum drives during WWII! They rarely come up for sale 80+ years later, in the 21st century. The A-25 was marketed as a Hawaiian guitar, but the neck is round-backed, so theoretically the instrument could have been played Spanish style, something designer George Beauchamp alluded to in the original patent application.

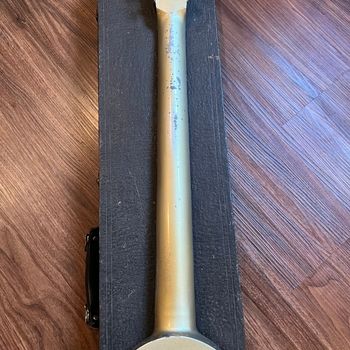

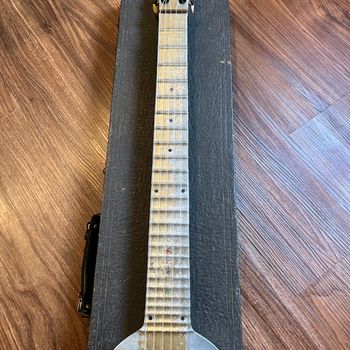

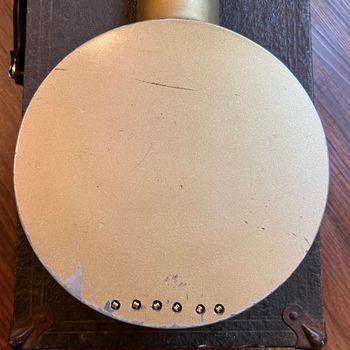

The very first Electro steels from 1932–3 have no onboard controls, this example has a single volume pot with an octagonal knob on the top. The fingerboard is integral with the neck and has raised ridges for frets and black position dot markers. The entire instrument was extremely futuristic for the 1930s, a high-deco minimalist design fabricated from a single piece of cast aluminum with a hollow space inside. This body was finished overall in a fairly fragile gold enamel wash that is partially intact on this example. The strings run through the body and over a separate chromed metal saddle, through the horseshoe magnet pickup, and on over a chromed brass nut to the slotted headstock.

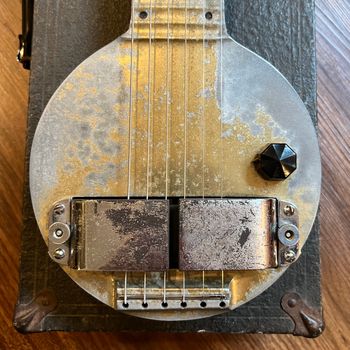

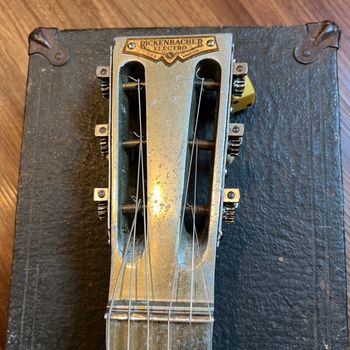

The pickup is the second major version of the famous Rickenbacker horseshoe unit with the new (for 1934-5) thinner 3/16" magnets and individual poles in the coil. The unit is adjustable for height with a knurled knob at each end; these first pattern mounting flanges have no "Pat. Applied For" stamp. The slotted headstock has a brass metal nameplate that reads "Richenbacher Electro, Los Angeles," with "RE" between mirrored lightning bolts. The combination of a serial number with an "A" prefix and other features suggest this example dates to later 1934 or 1935. Early Rickenbackers show somewhat inconsistent features and markings, as the tiny Los Angeles factory could be pretty lackadaisical about fine details.

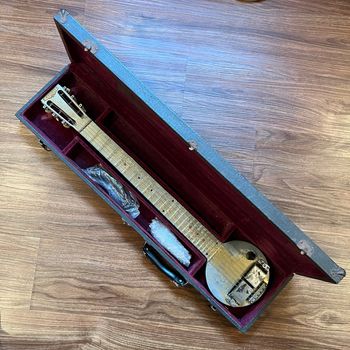

This example has some moderate wear overall but still sounds fantastic. Amazingly enough, even after 85+ years, the guitar itself is still a very fine musical instrument and remains one of the best-sounding steel guitars ever produced. While there will always be some debate as to who made the "absolute first" electric guitar, the introduction of the Rickenbacker Electro established a market for amplified instruments, and the company dominated it in these first years. The electro-magnetic stringed instrument pickup invented by George Beauchamp was by far the best-sounding and most successful of the early designs. It established the basic pattern for everything that followed. The A-25 remains unique, in some ways as modern as when it was first introduced, and certainly one of the most distinctive guitars ever designed. This one is still in the original hard case, with a cool metal tag on the lid indicating it was originally sold in Hawaii.

Overall length is 31 1/4 in. (79.4 cm.), 6 3/4 in. (17.1 cm.) across at the widest point, and 1 1/2 in. (3.8 cm.) in depth, measured at side of rim. Scale length is 25 in. (635 mm.). The nut measures 1 7/8 in. (48 mm) wide.

This rare 85+ year old Rickenbacker steel guitar has wear. However, it is a fantastic playing and sounding example of this historically significant and highly sought-after lap steel guitar. The heart of the instrument (the original pickup) is completely intact and sounds fantastic, with tons of volume and a truly singing sound. The volume pot is a slightly later 1930s piece that has very little taper. It still has the original octagonal knob. What appears to be the original 1934 flat-can pot is still in the case, with two of the tines broken off. The jack and internal wiring are otherwise original.

The gold-wash enamel finish on these very early Rickenbackers is inconsistent and often proved fairly fragile in use. This one has a lot of moisture wear (likely from the Hawaiian climate) along with numerous chips, scrapes, dents, and dings, with larger areas completely rubbed away on the face from contact with the players' hands. The front of the instrument is covered in spots where moisture has worn into and through the finish. This is actually beautiful in a reliced "Decasia" sort of way, but of course this is not how it looked when new.

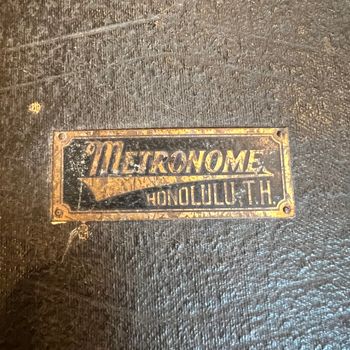

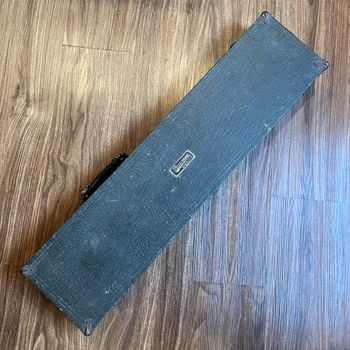

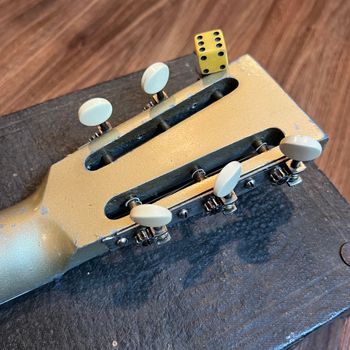

The pickup magnets have fairly heavy plating loss and corrosion on the top. Its tuners turn easily and hold tuning well. They are correct for the model, with one sporting a dice instead of its original button. This is a wonderful playing and sounding example of this sublime instrument. Despite scars from a long life doing what it was meant to do, this still-hardy survivor represents one of the true holy grails for steel guitar players and electric instrument collectors worldwide. The original slim rectangular hard case is well preserved, with a later handle and that wonderful "Metronome, Honolulu" tag on the lid. Overall Very Good + Condition.

1934-35 Rickenbacker (Rickenbacher) “The Speaker” Tube Amplifier

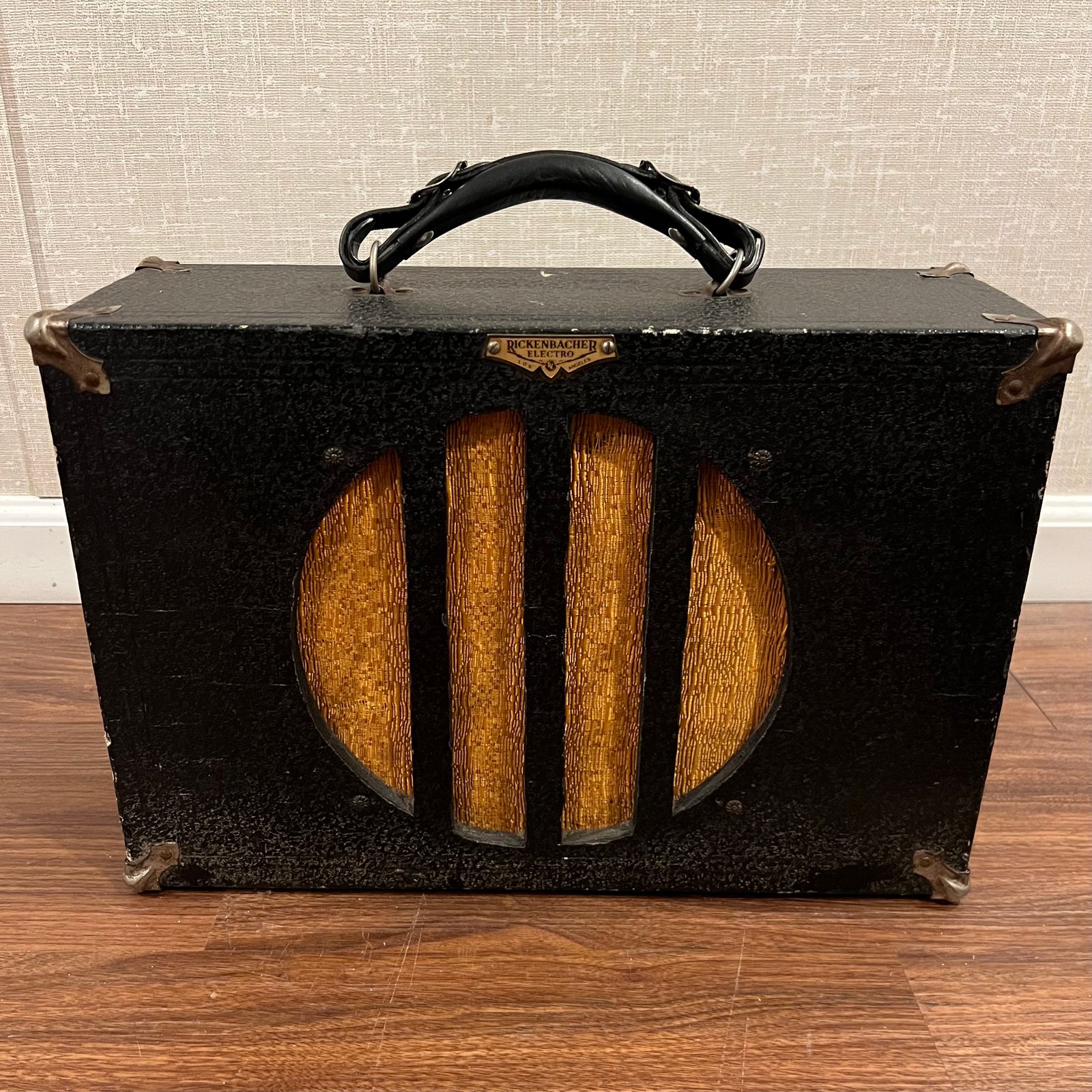

Rickenbacker Tube Amplifier (1934-5), made in Los Angeles, black fabric covering finish. "The Speaker", is the nickname for this, what was considered one of the first practical commercially available guitar amplifiers. This model was featured in the earliest Rickenbacker (or "Rickenbacher") catalogs, pictured alongside the iconic A-25 "Frying Pan" lap steel. It is said to have been designed by C.W. Lane, one of Electro Strings stockholders and built by the Van Nest radio shop in L.A. The case was provided by Johnson Cabinet Works. This particular amp is the second known variant of this initial design; the very first had no metal corners, nor did they feature the "Rickenbacher" logo plate on the face which appeared around 1934.

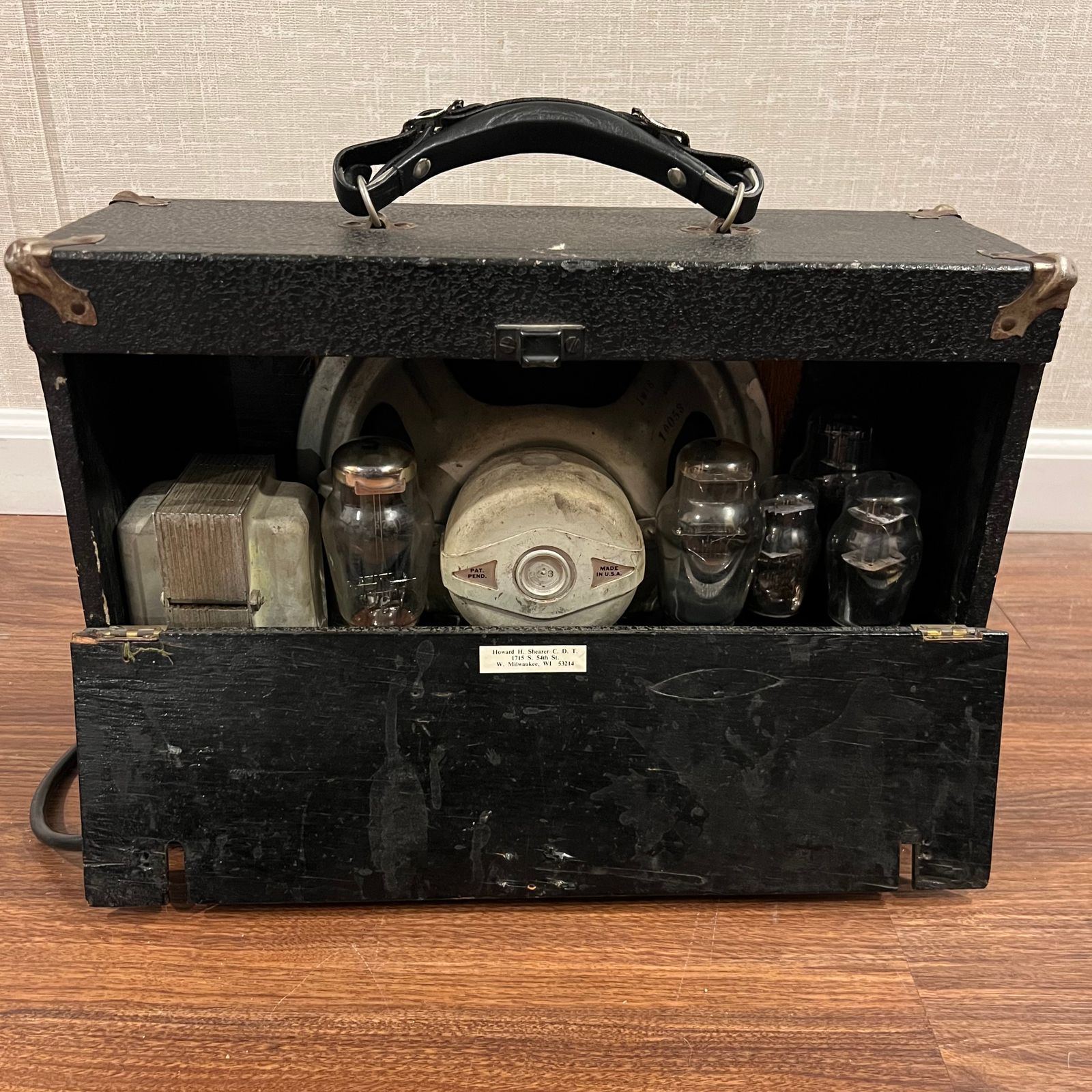

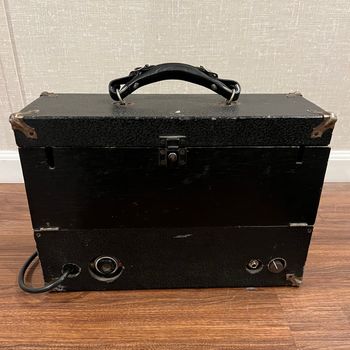

Like other Ricenbacker amps of the era, Black Keratol over wood and the gold grille cloth were used for the enclosure. As of 1932, three versions of the model were sold, accommodating up to three inputs, priced at $62.50, $65 and $70, respectively. This being the "one input" model, the control panel is as simple as can be with a single input and one volume knob. There is no dedicated on/off switch; when the amp is plugged into the wall, it is on! Two 47 power triodes in push-pull with limited preamplification puts out around 2-3 watts of power into a 10" field-coil speaker. This example is literally one of the first couple of hundred (at the most) guitar amplifiers ever sold commercially; it shows some wear but considering its nearly 90 years on earth remains nicely preserved and still sings with a sweet and chiming sound, not an overdrive monster but with a lot of tonal color.

Height is 11 in. (27.9 cm.), 16 in. (40.6 cm.) width, and 5 1/2 in. (14 cm.) deep.

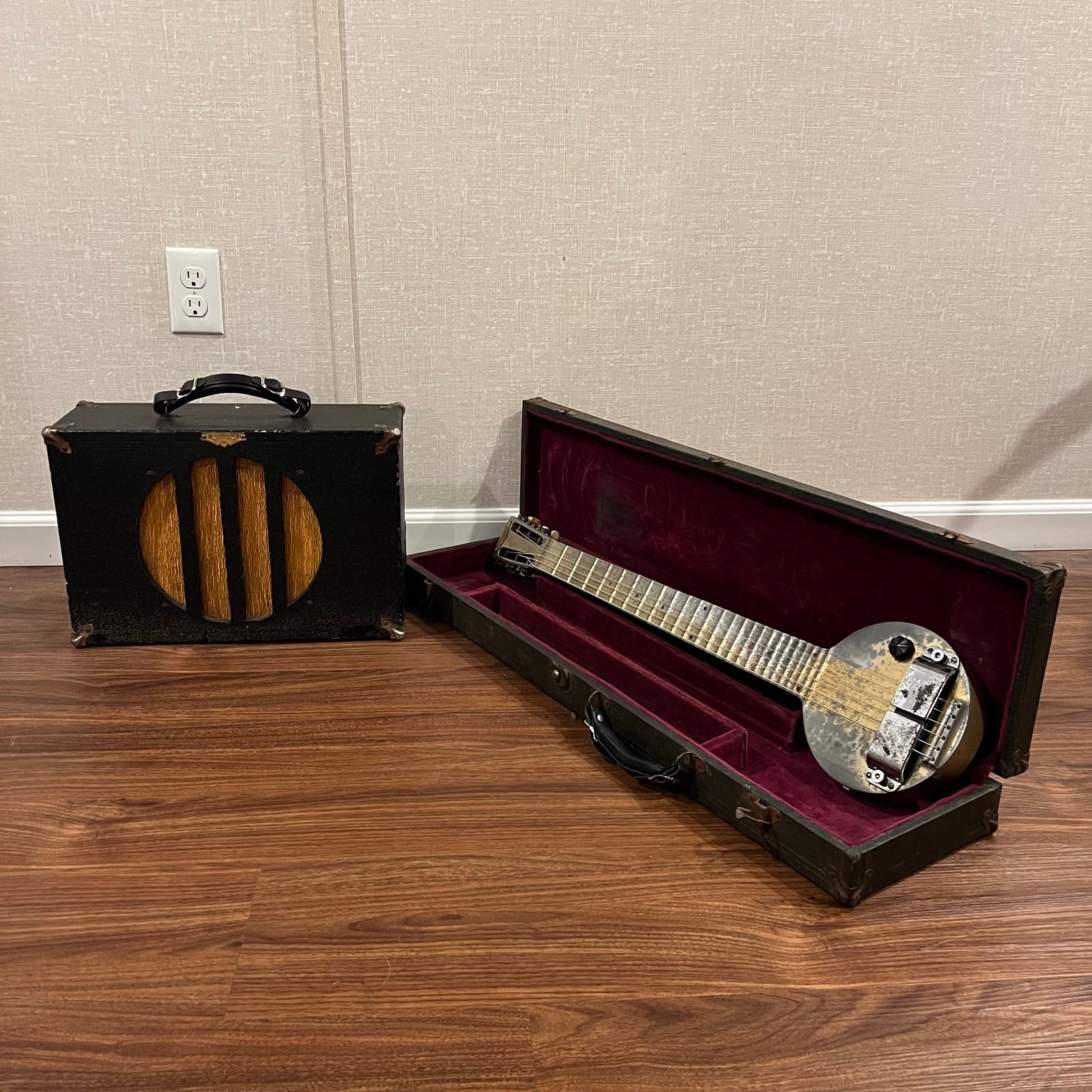

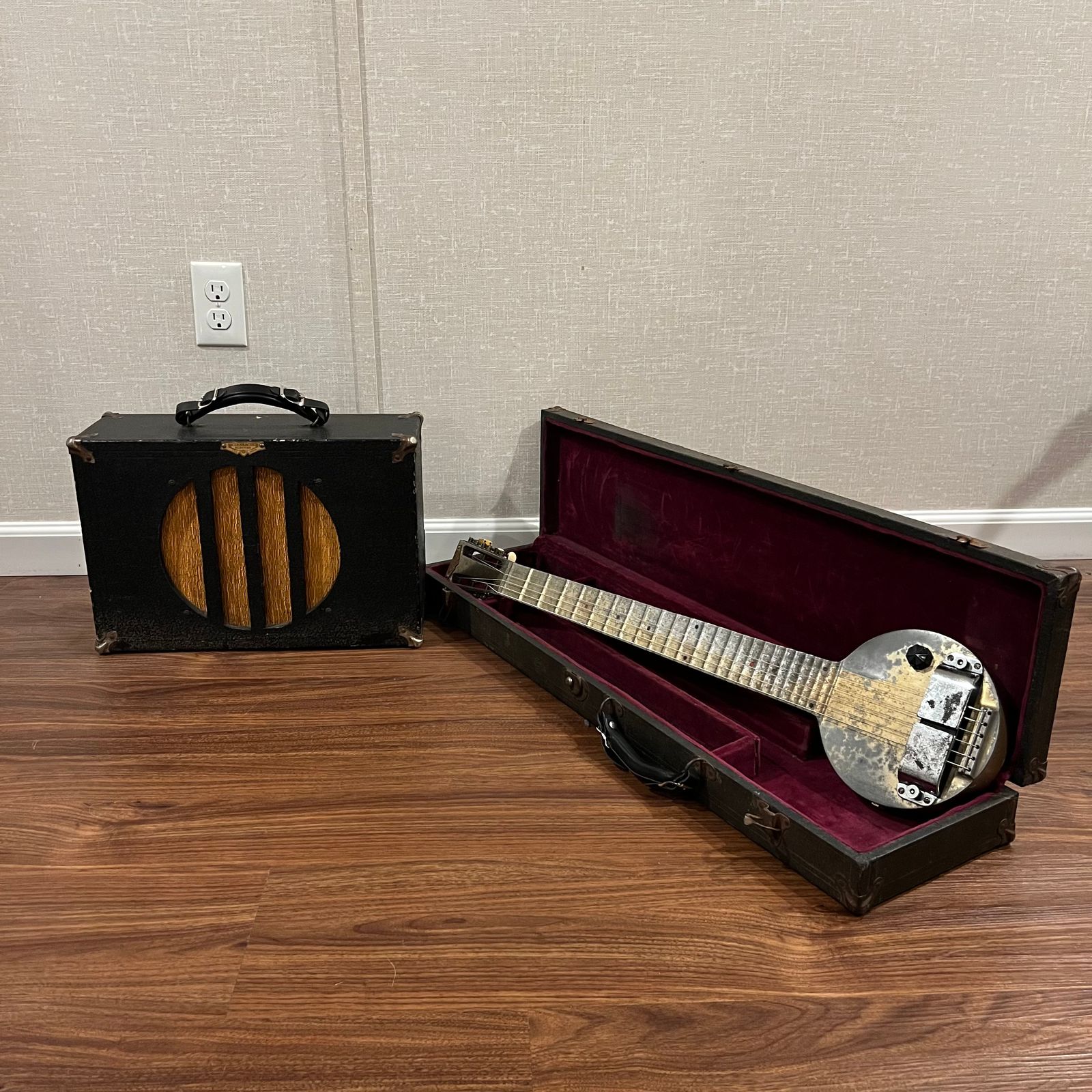

This is a very playable and extremely historic amp. It is still the perfect companion to an early Rickenbacker lap steel and a fine example of one of the earliest and best of the amplification units that started the electric guitar revolution.

Descriptions for this steel guitar and an identical amplifier in very similar condition were sourced from RetroFret

THESE PIECES ARE IN MY PERMANENT COLLECTION
